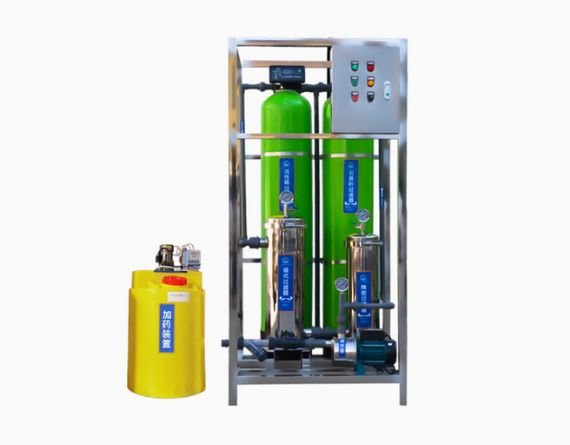

Car Wash Water Recycling System

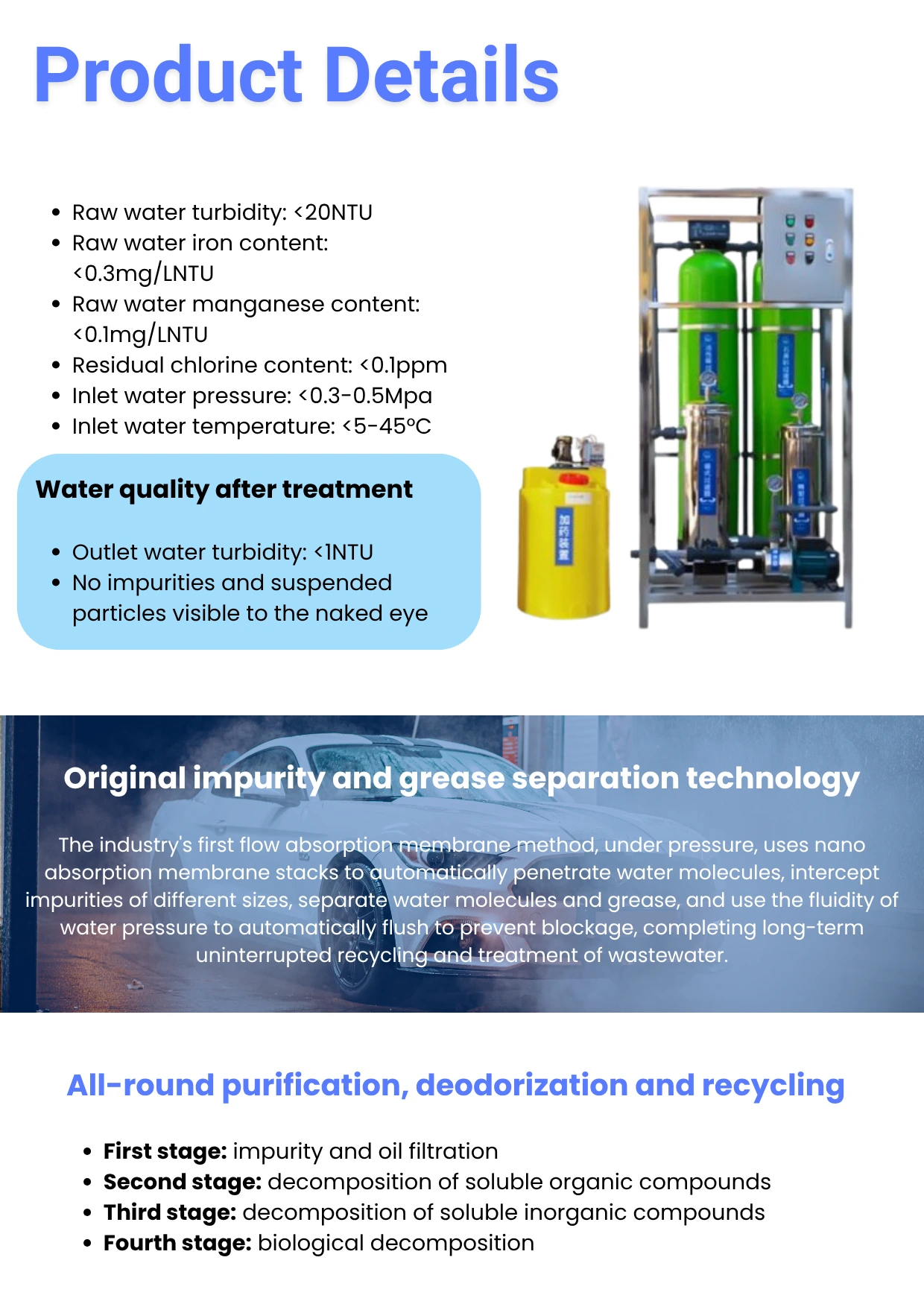

Features

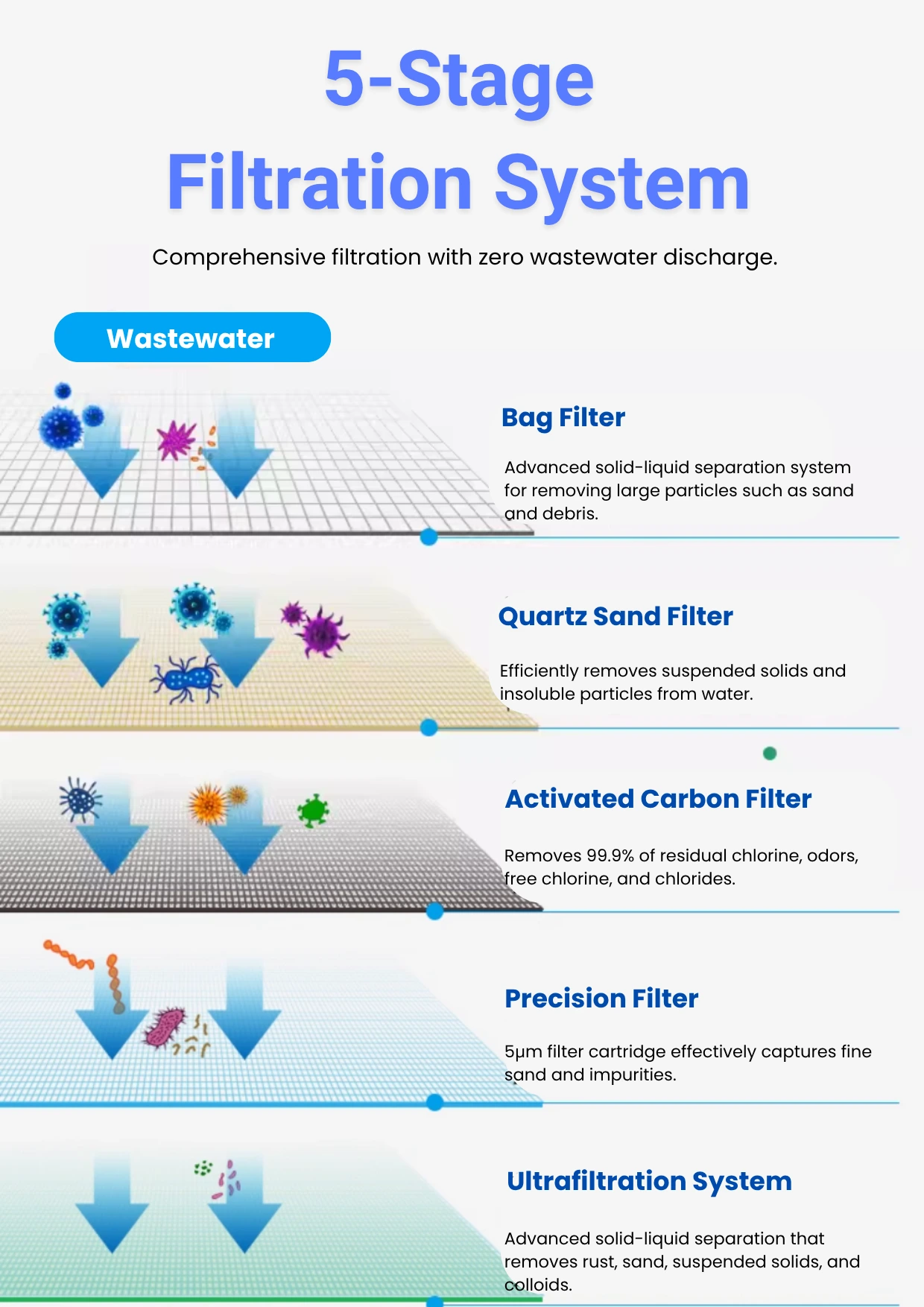

- Filter element: quartz sand layer, stainless steel filter, activated carbon, PPF cotton，UF
- Efficacy: non-direct drinking
- Raw water turbidity: <20NTU
- Inlet pressure: <0.3-0.5Mpa
- Outlet turbidity: <1NTU
- No impurities and suspended particles visible to the naked eye
Why Should Car Wash Wastewater be Recycled and Filtered?
During the process of car washing, wastewater often contains a variety of pollutants such as mud, dust, detergent residues, car wax, oil stains, lubricating oil, metal ions, rubber particles, microorganisms and suspended matter. If these wastewaters are discharged directly without treatment, it is easy to violate environmental protection regulations and cause pollution to soil and water bodies, bringing environmental and legal risks.
The car wash wastewater recycling system uses multi-stage filtration and ultrafiltration processes to effectively remove harmful substances, purify wastewater and reuse it. From an environmental perspective, it helps reduce water waste; from an operational perspective, it can significantly reduce water costs and achieve green and sustainable operations.
Product Parameters
- Model
| Model Code | Flow Rate | Control Type | Configuration | Filtration Type | Pump Included | Notes |
| CNEW-M-1T | 1 m³/H | Manual | Standard | Multi-stage | Yes | Basic manual model |
| CNEW-S-1T | 1 m³/H | Automatic | Standard | Multi-stage | Yes | Auto operation |
| CNEW-H-1T | 1 m³/H | Automatic | High-end | Multi-stage | Yes | Enhanced features |
| CNEW-S-2T | 2 m³/H | Automatic | Standard | Multi-stage | Yes | Standard for 2T capacity |
| CNEW-H-2T | 2 m³/H | Automatic | High-end | Multi-stage | Yes | Premium configuration |
| CNEW-S-3T | 3 m³/H | Automatic | Standard | Multi-stage | Yes | Suitable for medium-sized operations |
| CNEW-H-3T | 3 m³/H | Automatic | High-end | Multi-stage | Yes | Advanced features |
| CNEW-S-5T | 5 m³/H | Automatic | Standard | Multi-stage | Yes | High-volume standard model |
| CNEW-H-5T | 5 m³/H | Automatic | High-end | Multi-stage | Yes | Full-featured 5T system |
| CNEW-S-8T | 8 m³/H | Automatic | Standard | Multi-stage | Yes | For large car washes |
| CNEW-H-8T | 8 m³/H | Automatic | High-end | Multi-stage | Yes | Heavy-duty performance |
| CNEW-S-10T | 10 m³/H | Automatic | Standard | Multi-stage | Yes | Maximum capacity model |
| CNEW-UF-1T | 1 m³/H | Automatic | UF + Dosing | Hollow Fiber UF | Yes | With chemical dosing unit |
| CNEW-UF-2T | 2 m³/H | Automatic | UF + Dosing | Hollow Fiber UF | Yes | Efficient recycling with UF membrane |
| CNEW-B-1T | 1 m³/H | None | Basic | Filtration only | No | No pump included |
| CNEW-PF-0.3T | 0.3 m³/H | – | Pre-filter only | Coarse Filter | No | Used as pre-treatment |
Process Flow

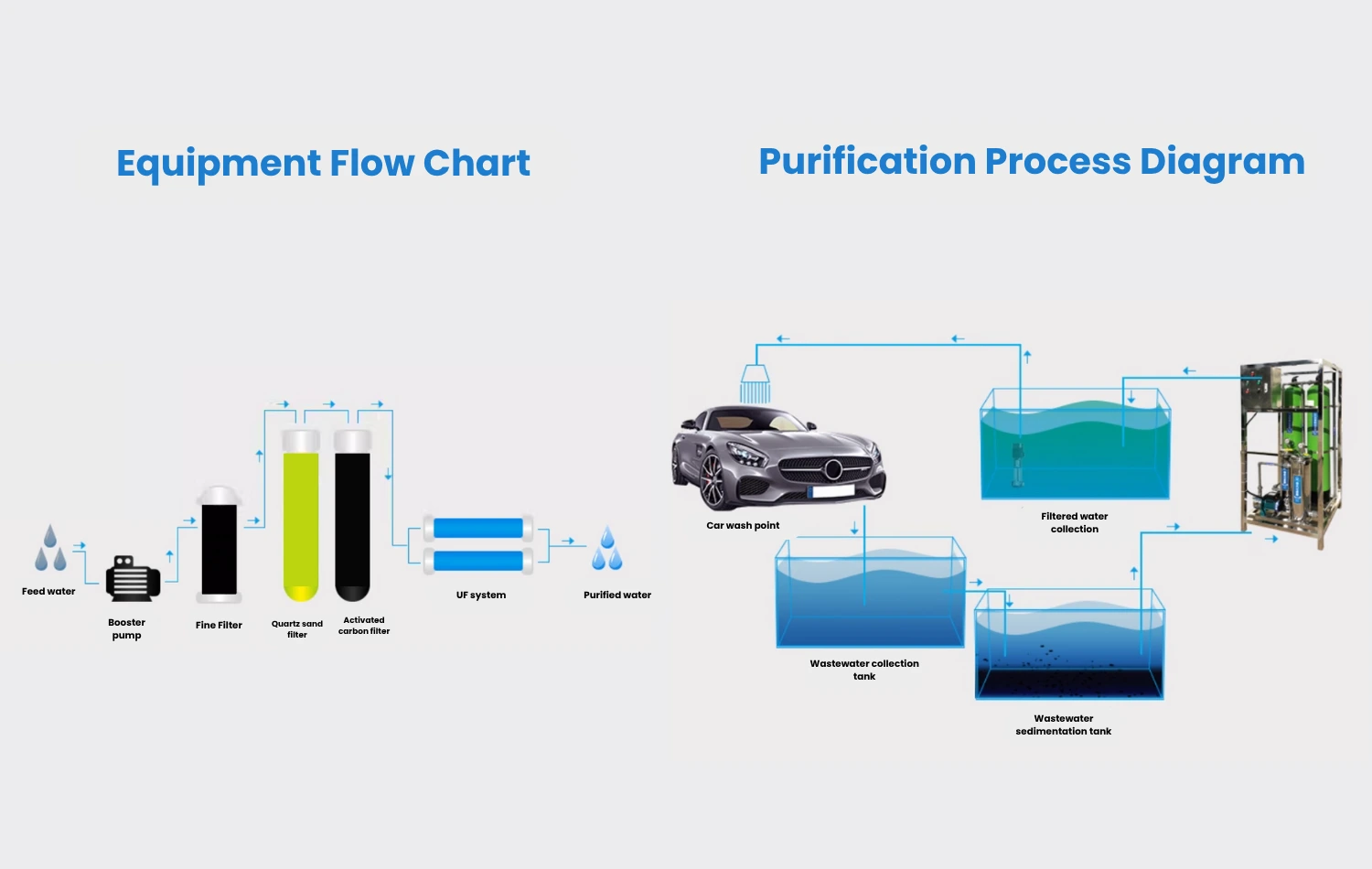

How does a Car Wash Wastewater Treatment System Work?

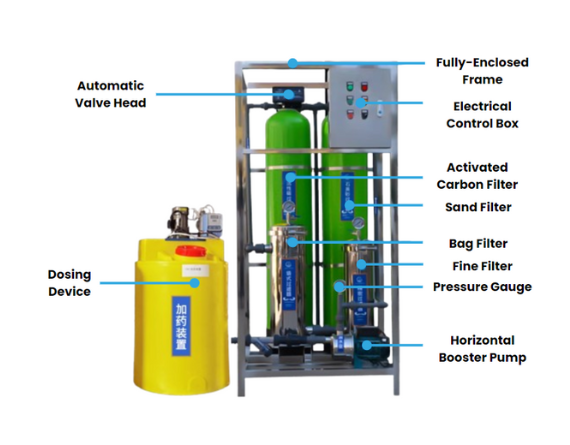

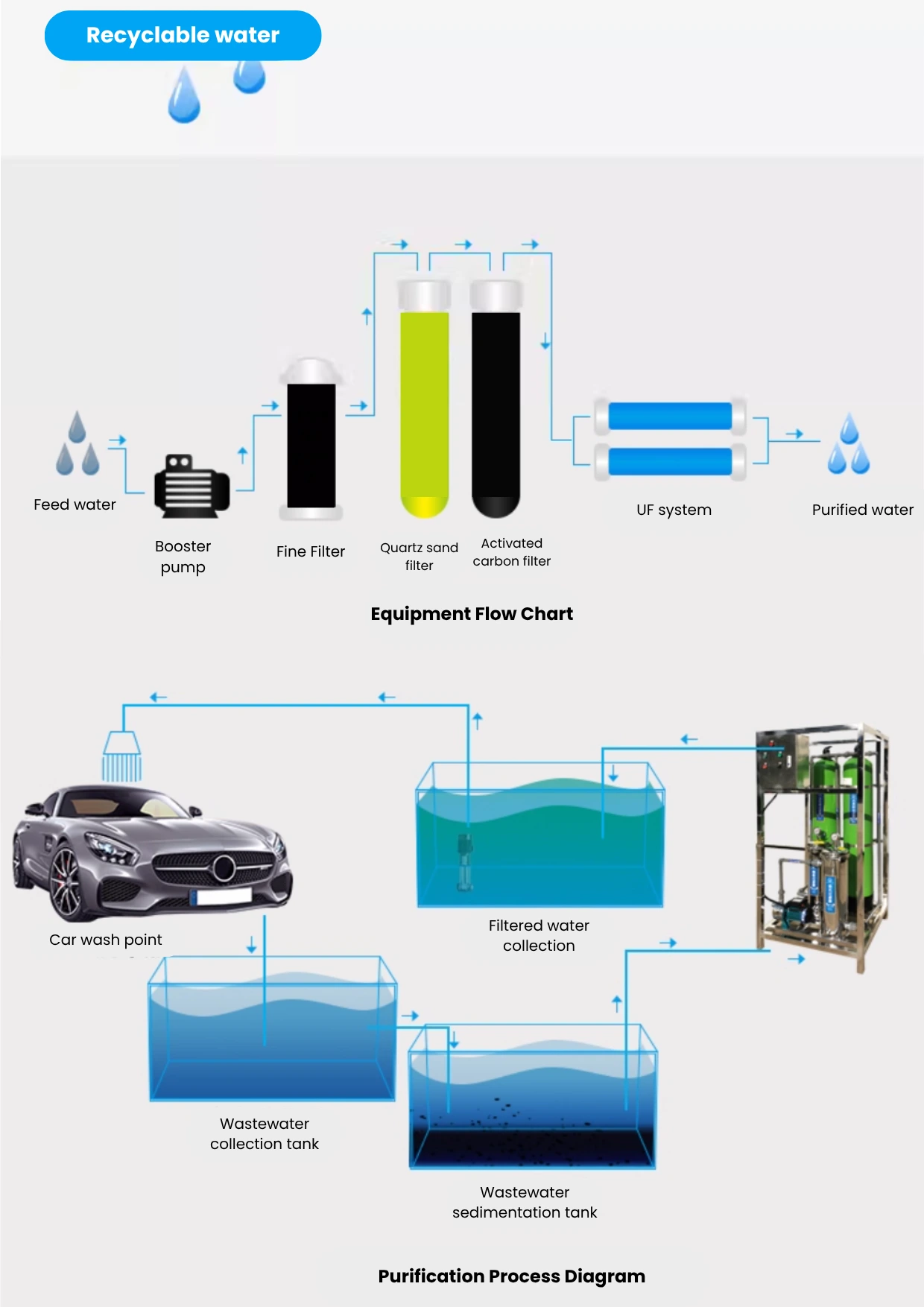

As shown in the figure, car wash wastewater is concentrated into the collection pool through the drainage ditch. After sedimentation to remove large particles of impurities, the relatively clear upper water is pumped into the wastewater reuse system. The sand filter and carbon filter are used to remove sediment, residual chlorine and odor. The dosing device simultaneously adds flocculants to further aggregate the suspended matter and enhance the subsequent filtration effect.
Then, the water flows through the bag filter and precision filter in turn to remove smaller particles and flocs, and finally enters the hollow fiber ultrafiltration membrane system for deep filtration to remove rust, colloids and residual impurities. The treated water is clear and stable and can be directly reused for car washing, realizing the recycling of sewage, reducing operating costs and improving the overall water treatment efficiency.

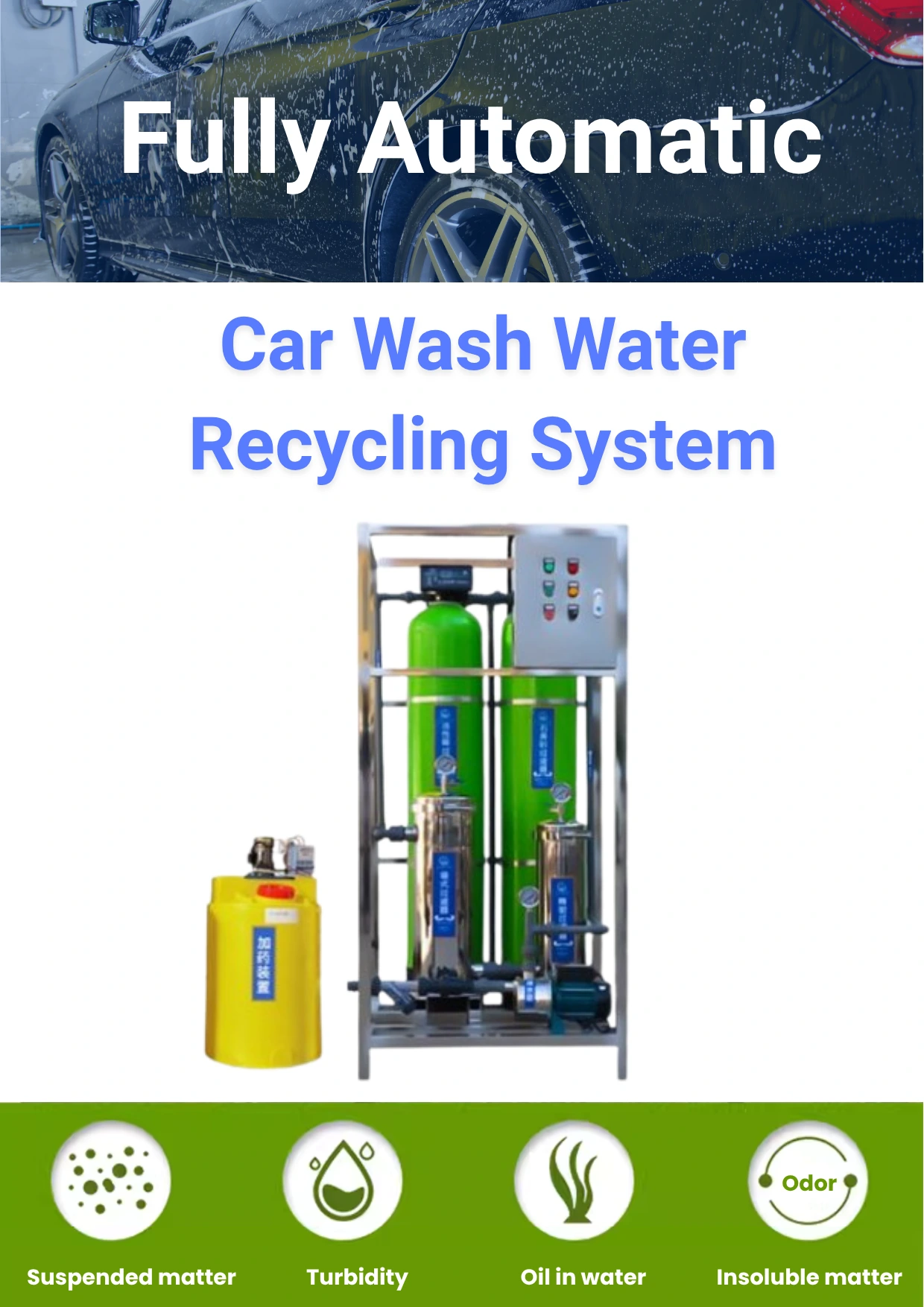

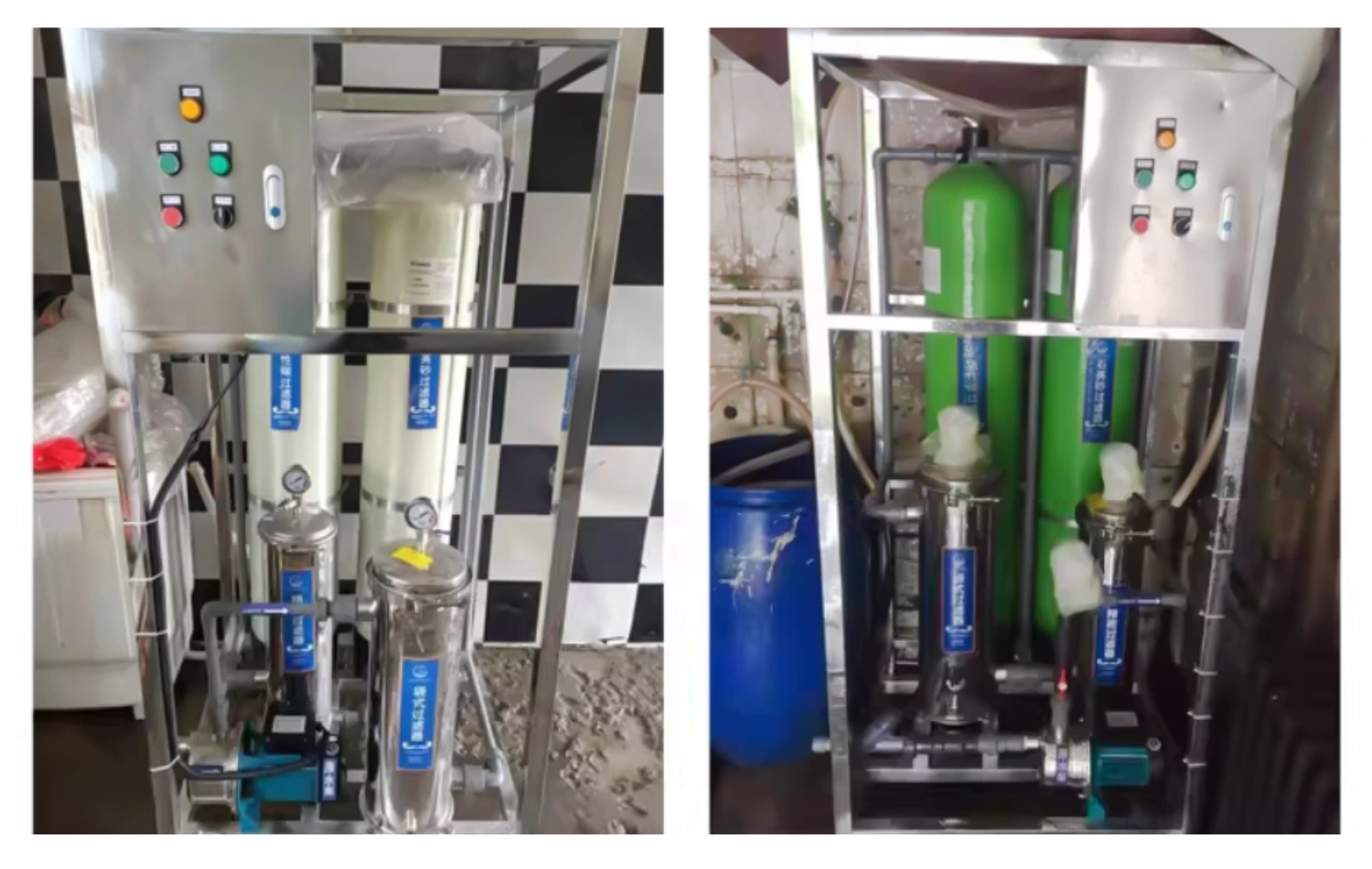

Product Advantages
-Water and energy saving: more than 90% of water resources are recycled, significantly reducing water costs.
-Environmental protection compliance: the treated wastewater can meet the discharge or reuse standards, reducing environmental pollution.

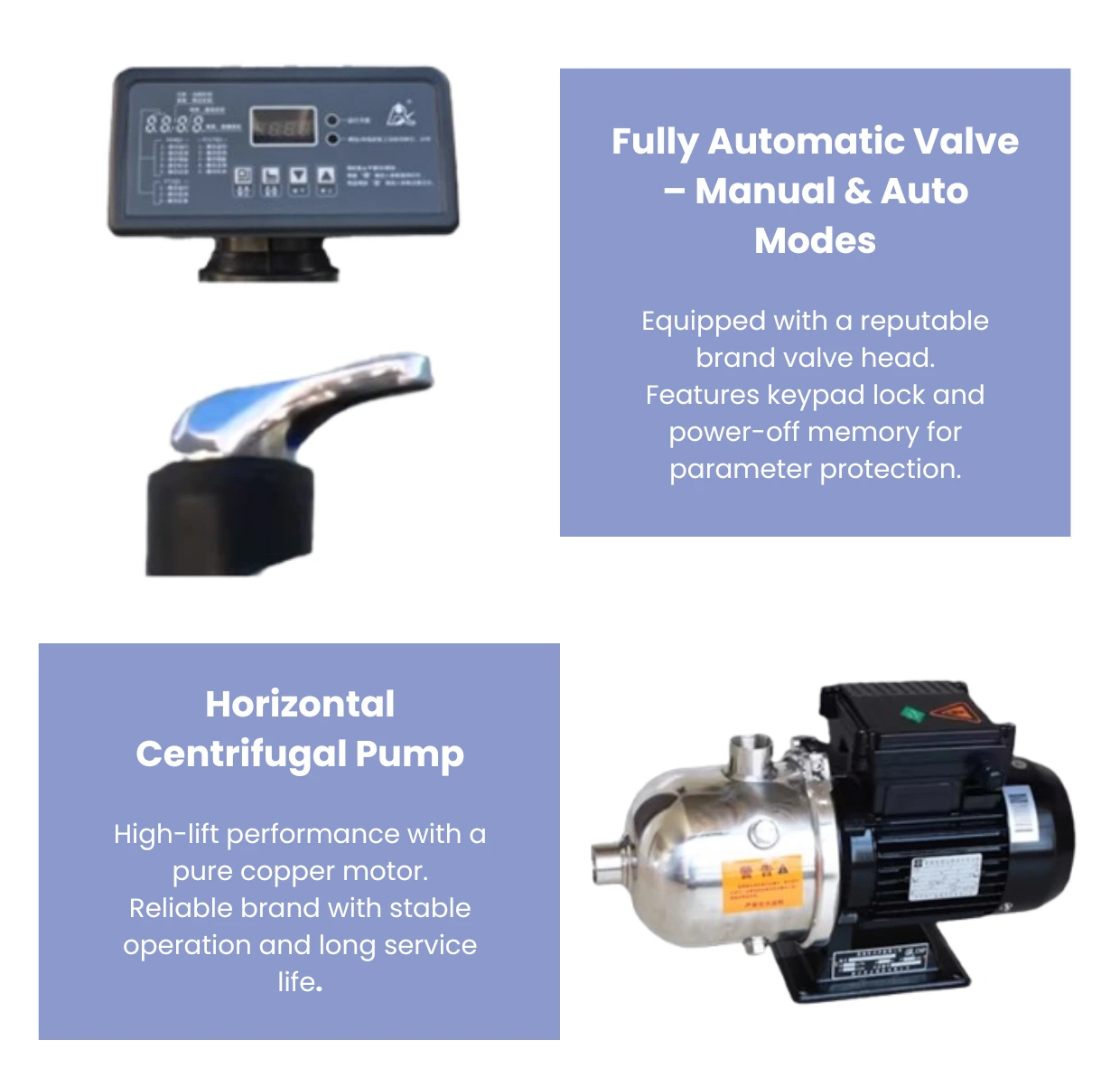

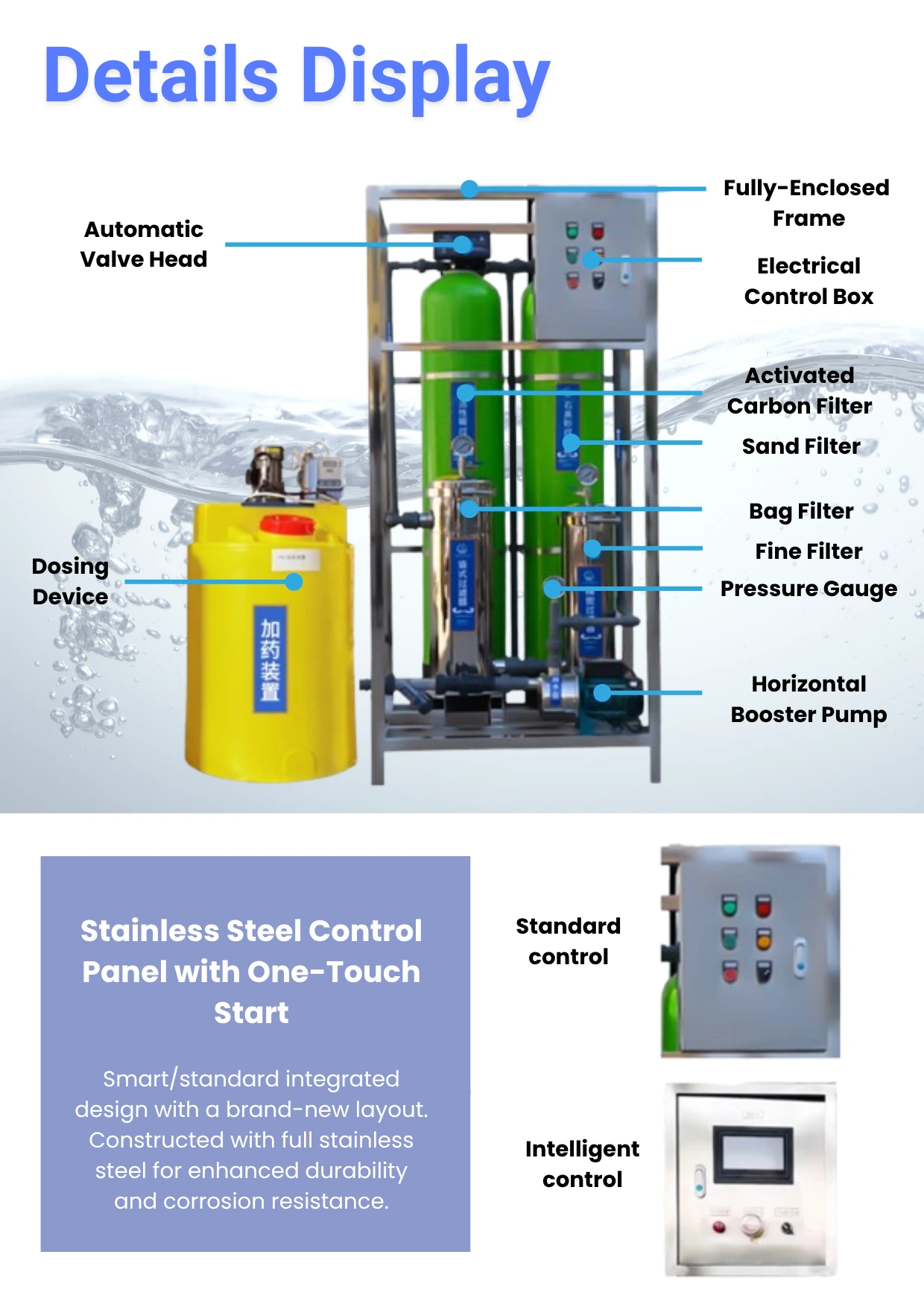

-Fully automatic operation: equipped with automatic valve head and electronic control system, simple operation and convenient maintenance.
-Compact structure: All-in-one frame design, small footprint, flexible installation.
-Customization support: Customize system configuration according to car wash site and flow, strong adaptability.
Our Product Advantages

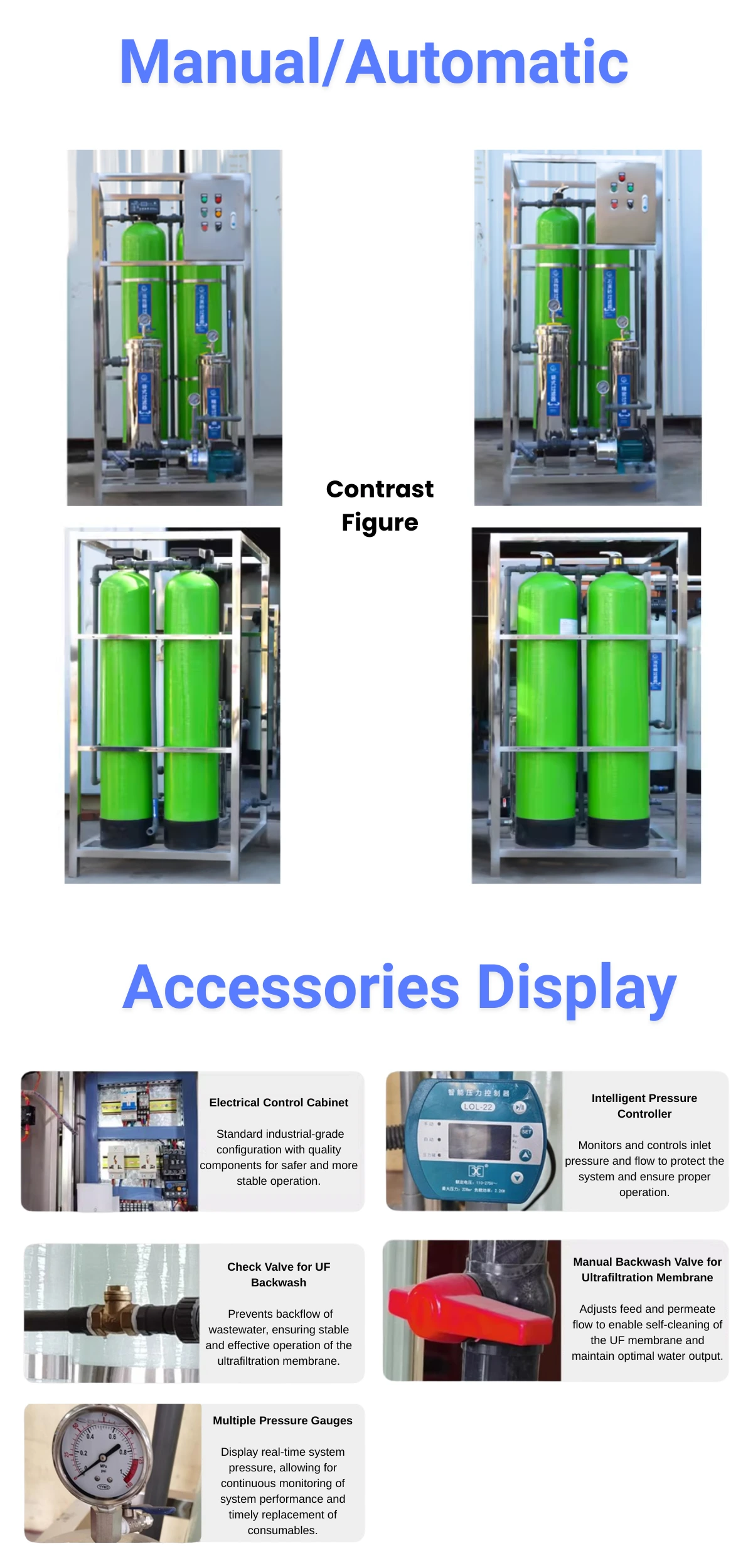

- NEWater VS Other Brands
Customer Feedback
“Really impressed with this car wash water recycling system. The setup was quick, and operation is super straightforward—no headaches at all. We don’t have to stress about EPA discharge compliance anymore, and the water comes out clean enough to reuse again and again. Saves money, saves water, and keeps the shop running smooth.”
“Great unit! We had it customized based on our daily wash volume, and it arrived in just a few days. The filters work efficiently, and the ultrafiltration really makes a difference. It’s built solid, doesn’t need much maintenance, and our team picked it up fast. Definitely worth the investment if you’re serious about water recycling.”
