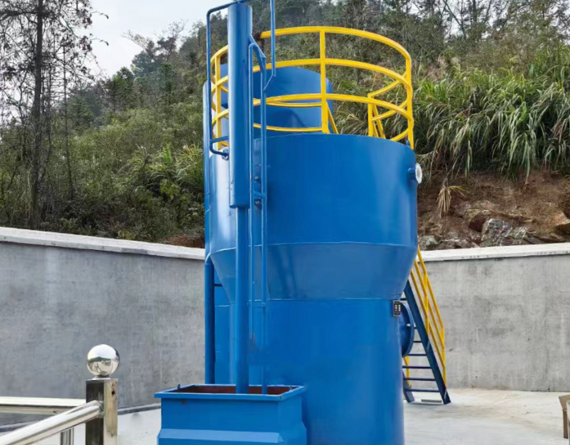

Integrated River Water Purification Equipment

This system uses high-efficiency gravity micro-vortex filtration to effectively remove sediments, algae, and suspended solids from surface water, producing clear water suitable for drinking.

Key Features:

Fully automatic operation
No electricity required
Easy to operate and maintain
High-quality water output
Stable and reliable performance

PRODUCT DETAILS

Send Your Inquiry

Description
Parameters
Process Flow
Product Advantages
Download
Top

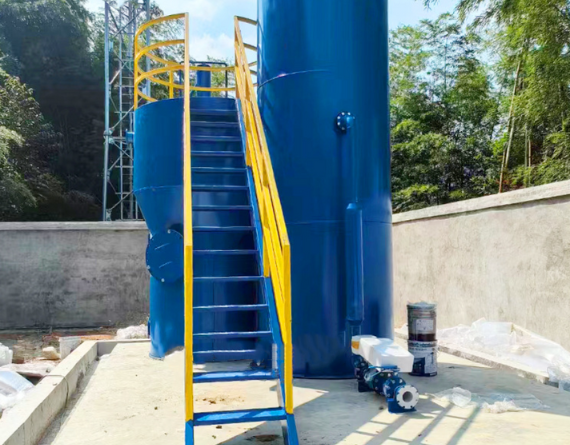

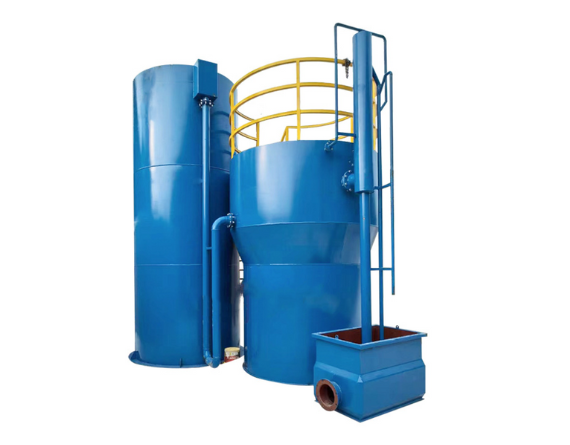

NEWater Integrated Gravity-Type Water Purification System

Our Carbon Steel Gravity Water Treatment System adopts a compact cylindrical design, easy to install and transport. With high automation, it runs without manual intervention, reducing labor and electricity costs. The durable carbon steel construction ensures long service life and excellent cost-effectiveness.

The system is versatile and can treat multiple water sources, including rivers, lakes, reservoirs, and groundwater. It is widely used for rural drinking water, community water supply, and small-scale industrial pre-treatment. Flow rates can be customized to meet different needs.

We provide high-quality Integrated Micro-Vortex Filtration Systems, tailored to customer requirements. Our turnkey solutions cover design, delivery, installation, and commissioning—helping you save time, reduce costs, and secure reliable clean water.

Product Parameters

Model

Parameter	Specification / Range	Note
Model	NE-GQ-SD5A9SA	Customizable
Water Production Capacity	1–300 m³/day	Adjustable to demand
Working Pressure	1.5 MPa	Flexible
Dimensions (L×W×H)	2500 × 6000 × 3600 mm	Can be customized
Weight	1200 kg	Approximate
Rated Power	1500 W	Can vary per configuration

Process Flow

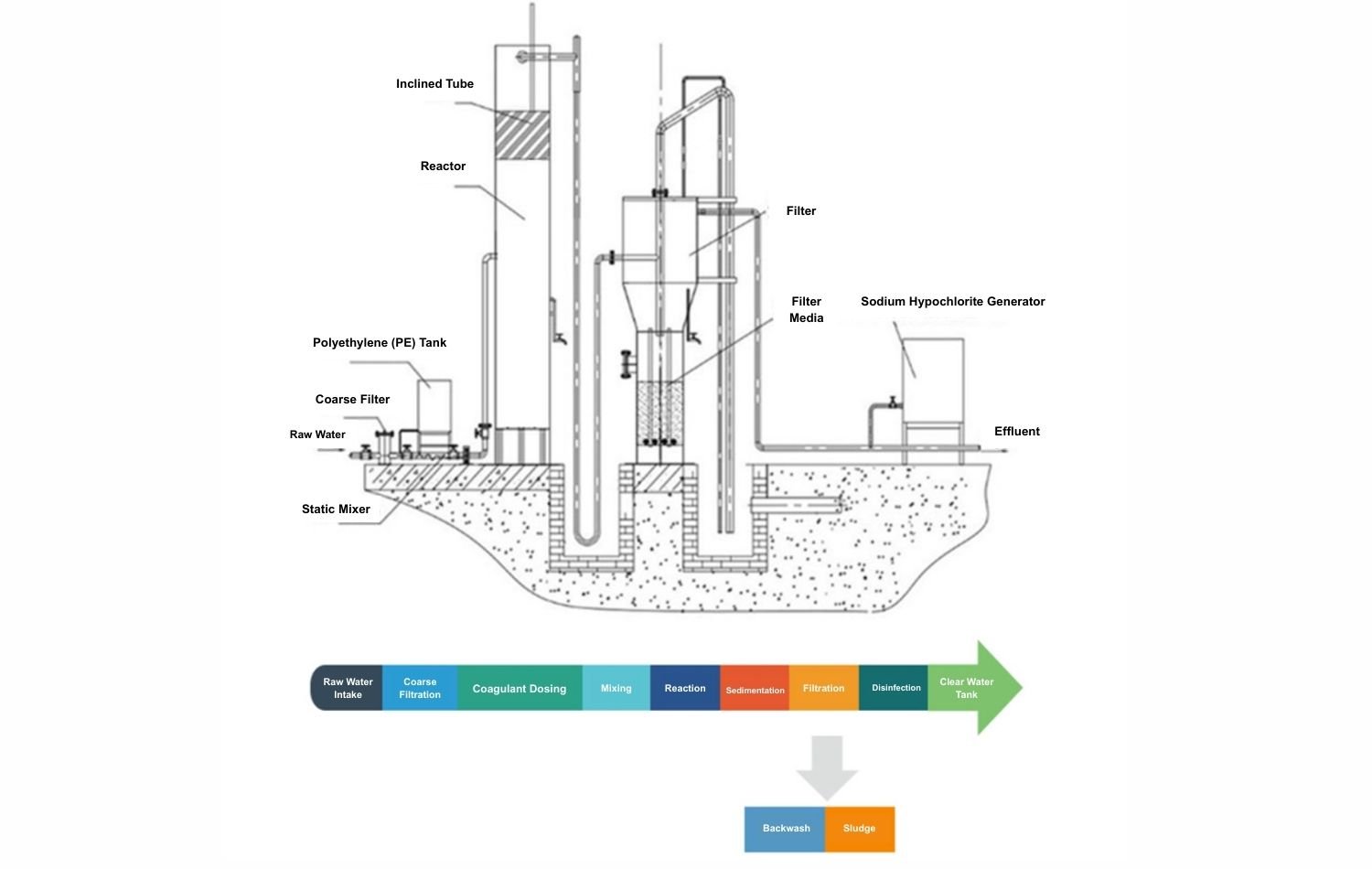

Equipment Composition

Raw Water Intake: Raw water pump and piping provide stable flow into the system.
Chemical Dosing Unit: Dosing pump and flocculant storage allow precise addition of coagulants.
Mixing Unit: Ensures rapid and uniform mixing of raw water and chemicals to form initial flocs.
Main Treatment Unit: Integrated coagulation, sedimentation, and multi-media filtration efficiently remove suspended solids, colloids, and fine particles.
Sludge Discharge: Settled sludge is removed via the drainage channel.
Disinfection Unit: Chlorine or other disinfectants ensure complete microbial removal.
Clean Water Storage & Outlet: Treated water is stored in the clear water/disinfection tank and delivered to points of use.
Control Unit: Automated or manual control coordinates pumps, dosing, and disinfection, while monitoring water levels and process status.

Operating Principle

The system treats water through a continuous process of chemical reaction → impurity separation → disinfection:

Chemical Reaction: Raw water is pumped to the mixing unit where coagulants are precisely added, destabilizing colloids and forming flocs.
Impurity Separation: Floc-laden water flows through the coagulation and sedimentation zones; flocs settle under gravity and are removed as sludge, while clarified water passes through media filtration to remove remaining particles.
Disinfection: Filtered water enters the clean water/disinfection tank, where disinfectants (e.g., sodium hypochlorite) inactivate bacteria and viruses, ensuring safe drinking water.
Automated Control: The control system coordinates all units, manages sludge discharge cycles, adjusts dosing, and monitors water quality, with manual override available if needed.

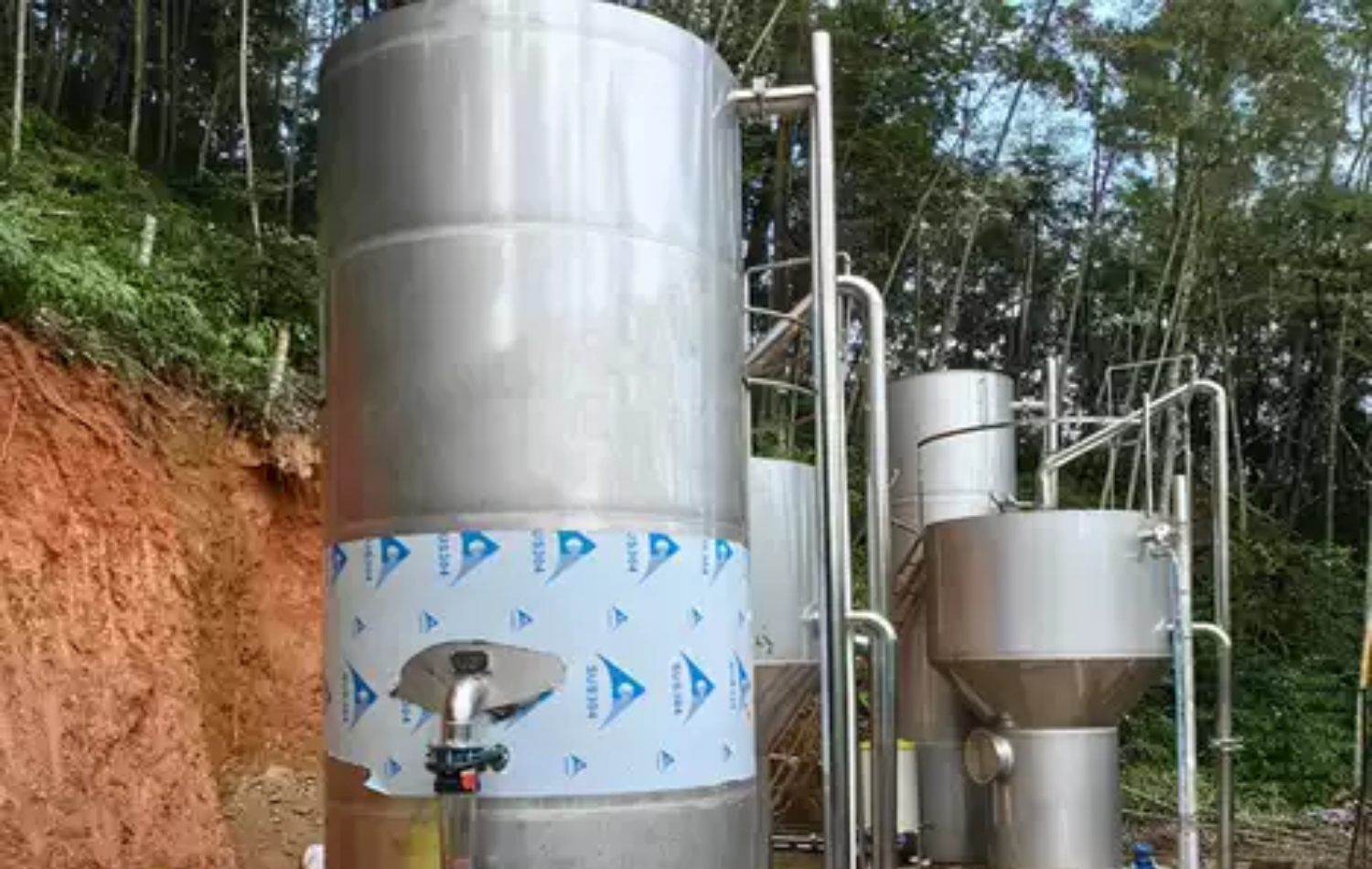

Fully Automatic Water Treatment System working principle

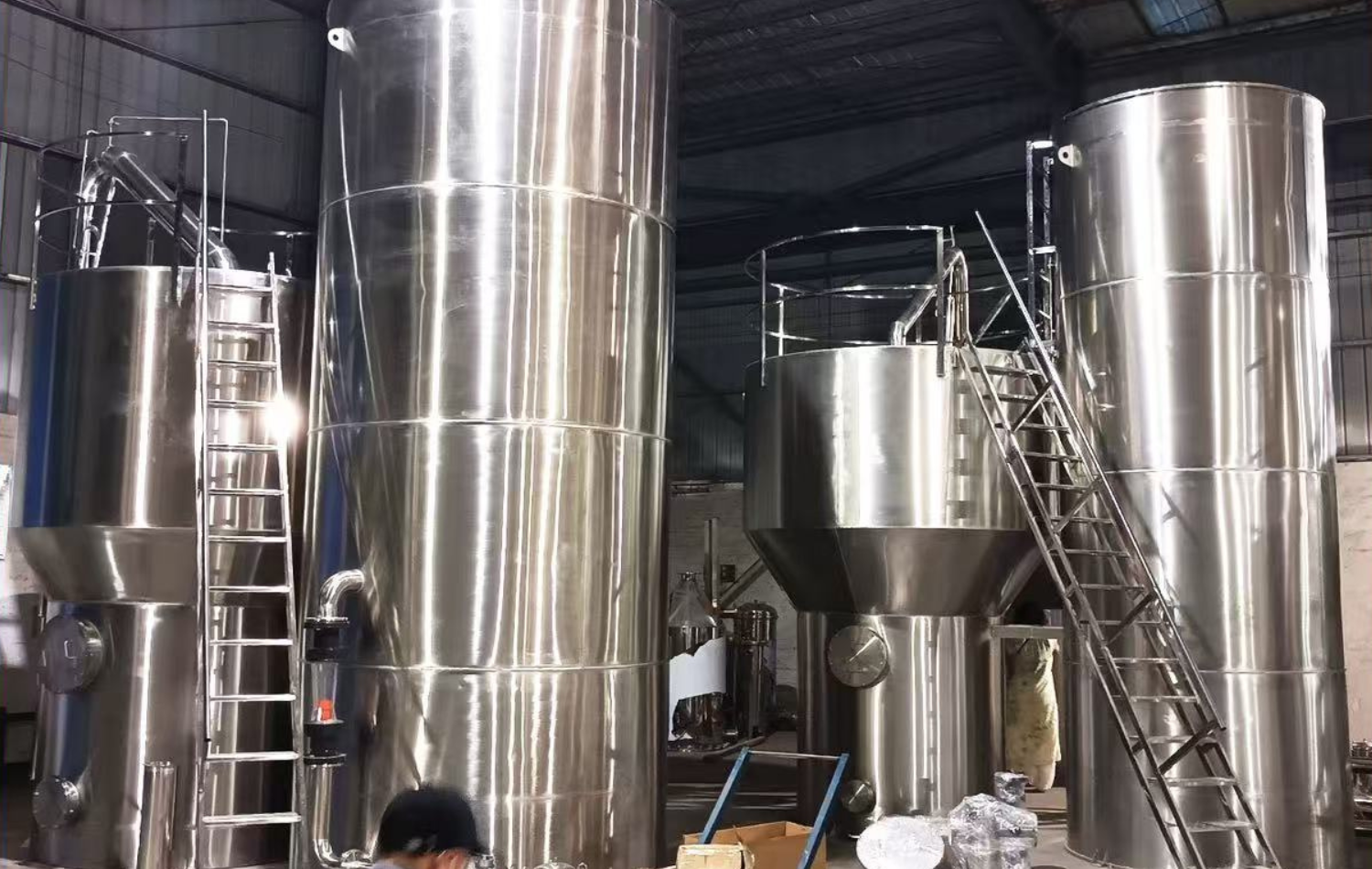

Integrated Micro-Vortex Filtration System Advantages

Product Advantages

Fully Automated Operation – Minimal operator intervention; only routine water quality monitoring required.
Low Operating Costs – Energy-efficient design ensures stable and economical performance.
High Water Quality – Produces crystal-clear water with turbidity consistently below 1 NTU.
Self-Cleaning Backwash System – Powerful siphon backwash uses treated water as the backwash source, requiring no additional facilities.
High Water Recovery Rate – Water loss is less than 3%, achieving up to 97% treated water output.
Compact Footprint – Saves over 50% of floor space compared to traditional systems; suitable for both indoor and outdoor installation.
Flexible and Modular Design – Easy to install, dismantle, expand, or relocate, ensuring long-term adaptability.

Typical Applications

The integrated water purification system is suitable for a wide range of raw water sources, including spring water, reservoir water, river water, lake water, well water, and other surface or underground water.
It is widely applied in:

Municipal water supply plants for towns and rural communities
Industrial facilities as pretreatment for high-purity water, cooling water, and boiler feed water
Drinking water projects in schools, hospitals, hotels, and residential communities
Emergency and mobile water supply in disaster relief or remote areas
Food & beverage industry as a reliable pretreatment solution
